デカンタ型遠心分離機

デカンタ型遠心分離機は、遠心沈降の原理を利用して、懸濁液中の密度差のある物質を連続的に分離する機械の一種です。その基本原理は次のとおりです。ボウルと送りスクリューは一定の差速度を持って高速回転します。材料はフィードチューブを通ってスパイラル材料プッシャーの内筒に連続的に導入され、加速後にボウルに入ります。遠心力場の下では、より重い固体がボウルの壁に堆積し、残留物層を形成します。スパイラル状の材料プッシャーは、堆積した固体をボウルの先細端まで連続的に押し出し、乾燥エリアで脱水した後、残留物排出口を通って機械から排出します。

デカンタ型遠心分離機

フルスピード運転で連続供給、沈降、分離、洗浄、排出を実現します。コンパクトな構造、連続運転、安定した運転、分離対象物質への高い適応性、高い生産能力、メンテナンスの容易さなどの特長を備えています。粒径0.005mm以上、濃度2~40%の固体を含む懸濁液の分離に適しています。化学工業、軽工業、医療、食品、環境保護などの業界で広く使用されています。

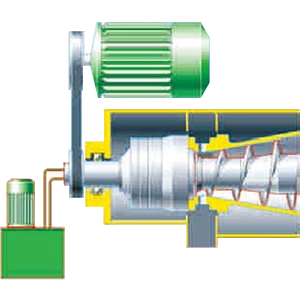

  • 油圧駆動

    油圧駆動では、弓とスクリューは可変周波数モーター周波数変換器油圧モーターによって駆動されます。

    油圧駆動モードでは、弓とスクリュー間の速度差を油圧モーターによって正確に調整できます。非常に低い差回転速度での運転では、他の運転モードよりも高い精度と安定性を実現します。ボウルが正常に動作する場合、ボウルとスクリューは一定の速度で動作します。スパイラル材料プッシャーの負荷が増加すると、材料の詰まりを避けるために、油圧モーターがスパイラル材料の出力を調整して加速速度で動作します。材料詰まりによる洗浄停止時には、油圧システムによりスパイラル材料プッシャーを個別に駆動することができ、洗浄メンテナンス効率が大幅に向上します。

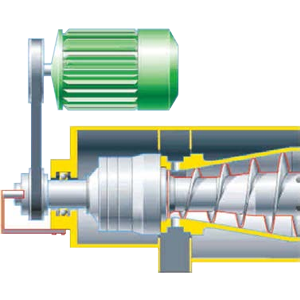

  • シングルモーター駆動

    シングルモーター駆動では、ボウルとスクリューは 1 つの可変周波数モーター周波数コンバーターによって駆動されます。この運転モードはシンプルで操作が便利で、製造コストも比較的低いです。

    シングルモーター駆動 is mainly used for materials with a constant solid content and those having no strict requirements for the water content of discharged solids. As there is no necessary differentialspeed adjusting mechanism, the differential speed between bowland screw can only be realized through changing the gear transmission ratio or the rotation speed of the bowl.

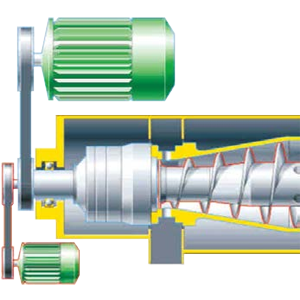

  • ダブルモーター駆動

    ダブルモーター駆動では、ボウルとスクリューは 2 つの可変周波数モーターと 2 つの周波数コンバーターによって駆動されます。

    ダブルモーター駆動モードでは、モーターの回転速度を簡単に調整するだけで、ボウルとスクリューの差速度を調整できます。したがって、この運転モードは、固形分含有量が一定ではない材料や、排出される固形分の水分含有量に対する要求が厳しい材料に広く使用されています。

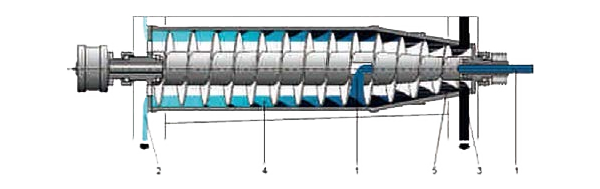

  • 固液二相デカンタ遠心分離機

    1. 餌やり

    2.液体

    3.ソリッド

    4. 沈殿池

    5. 脱水エリア

    二相動作原理

    フィードチューブを通ってスパイラル材料プッシャーのキャビティに入った後、懸濁液は材料ベントを通ってボウルのキャビティに入ります。沈降後の固形物は、スクリューの差速による押し込み作用により船首の小端部へ移動し、最終的に固形物排出口から排出されます。遠心力の作用により、液体は中空の液環を形成し、船首の長い方の端に移動します。調整可能なオーバーバッフルを通過した後、重力の作用により液体出口から排出されます。

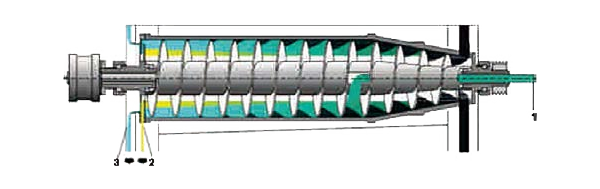

  • Liquld-llquld -solld 三相デカンタ遠心分離機

    1. 餌やり

    2.軽い液体

    3. 重い液体

    4. 販売済み

    三相動作原理

    ボウルとスクリューは一定の差速度をもって高速回転します。材料はチューブからボウルに入ります。遠心力場の作用により、比重の高い液体がボウルの内壁に蓄積し、遠心ポンプまたはオーバーフロープレートを通じて排出されます。比重の低い液体は内部液環を形成し、重い液体の表面に付着し、オーバーフロー流路から排出されます。スパイラル材料プッシャーの作用により、材料中の固形物は継続的に弓のテーパー端まで押され、乾燥エリアを通過した後、残留物排出口から排出されます。

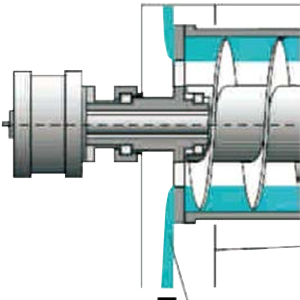

  • 背圧によるオーバーフローバフィー排出

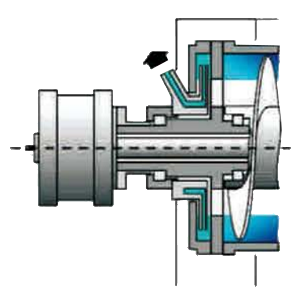

  • 調整可能な遠心ポンプ - 背圧材料付き

会社名
Yixing Huading Machinery Co.,Ltd.
Yixing Huading Machinery Co.,Ltd. (Huading Separator) は 1954 年に設立されました。同社は、清澄、精製、濃縮に関する独自の主要技術に依存しており、中国で特殊な製品とエンジニアリング ソリューションを提供する評判の高いサプライヤーです。
Huading が提供する装置 (ディスク遠心分離機、デカンタ遠心分離機)、システム、およびサービスは、お客様が最適化されたプロセスのパフォーマンスを向上できるように特別に設計されています。 Huading が提供するソリューションは、顧客が生産プロセスにおける分離と濾過の問題を解決するのに役立ちます。
Huading のディスク遠心分離機とデカンタ遠心分離機は、生物医学、飲料、植物抽出、乳製品、石油産業、化学エネルギー、水処理、その他の産業に使用されています。ディスク型遠心分離機とデカンタ型遠心分離機の能力は実験用の500L/Hから工業用の90T/Hまで幅広く、標準モデルは合計100機種以上あります。 China Ting の組織は顧客と緊密に連携して、顧客が業界の先頭に立つことを支援します。
効率的、強力、そして信頼性。 50年以上にわたり、中国亭の分離機は常に遠心分離技術の分野でディフェンダーの役割を果たしてきました。したがって、China Ting の開発プロセスは、顧客に対する責任をもたらすだけでなく、会社のビジョンを作成したと言えます。
名誉の証明書
  • 証明書
  • 証明書
  • 証明書
  • 証明書
  • 証明書
  • 証明書
知識
業界の知識

Key Features and Advantages of Decanter Centrifuges

Decanter centrifuges excel in continuous operation, which is one of their most significant advantages. In industries where large quantities of material need to be processed without interruption, these machines are indispensable. The continuous operation allows the centrifuge to process materials without halting for each batch, thereby enabling higher throughput and a more consistent production rate. This feature is particularly crucial in industries such as wastewater treatment, oil recovery, and food processing, where time is a critical factor in maintaining production schedules. For instance, in wastewater treatment, continuous operation allows the separation of solids from effluent water without having to stop and restart the process. This results in steady processing and ensures that the treated water is consistently compliant with environmental regulations. In the food and beverage industry, decanter centrifuges are used to clarify juices and extract valuable liquids, all while maintaining continuous operations. This high throughput allows for economies of scale, meaning that large quantities of product can be processed efficiently and cost-effectively. By reducing downtime, decanter centrifuges ultimately help lower labor and operational costs, increasing profitability for industries that depend on high-volume processing. For companies like Yixing Huading Machinery Co., Ltd., which has decades of experience in centrifuge design, the ability to provide continuous, high-capacity machines enables us to meet the needs of industries requiring large-scale production. Whether the task is small-scale laboratory experiments or large industrial processes, Huading’s decanter centrifuges ensure that our clients' production lines remain operational without significant interruptions.

Durability is an essential characteristic of decanter centrifuges, particularly in industries where equipment operates under harsh conditions. The construction of decanter centrifuges, using high-quality materials such as stainless steel and advanced alloys, ensures that these machines are capable of withstanding the stress of high-speed rotations, abrasive materials, and corrosive substances. This makes them an excellent choice for industries such as chemical processing, oil and gas, and mining, where the equipment may be exposed to harsh chemicals or abrasive solids. Decanter centrifuges are designed with components that resist wear and tear over extended periods of use. The high-torque motors and precision-engineered parts are built to last, even under the most demanding circumstances. This robust construction not only increases the machine's operational lifespan but also reduces the frequency of repairs and downtime, leading to long-term savings in maintenance costs. In many cases, the maintenance cost savings from a durable decanter centrifuge can exceed the initial investment, making it a sound financial decision for businesses in demanding industries. Yixing Huading Machinery Co., Ltd. ensures that all their decanter centrifuges are constructed with top-tier materials that withstand even the toughest conditions. With decades of experience in providing equipment to industries such as water treatment and biomedicine, Huading has engineered machines that balance durability with performance. The company's focus on creating reliable, long-lasting equipment allows our clients to experience less downtime, reduce operational interruptions, and minimize the need for frequent maintenance, contributing to overall process efficiency.

Energy efficiency has become a focal point for industries looking to reduce their environmental impact and lower operational costs. Decanter centrifuges are designed with several features that make them energy-efficient, ensuring that only the necessary amount of energy is used during operation. For example, modern decanter centrifuges incorporate variable frequency drives (VFDs), which allow operators to adjust the rotational speed of the machine based on the specific needs of the material being processed. This not only optimizes performance but also minimizes energy consumption. The energy-efficient design also helps reduce the overall carbon footprint of industrial operations. This is particularly important in industries where energy costs are a significant part of the budget, such as in wastewater treatment plants, chemical production, and even beverage manufacturing. The savings in energy costs from using decanter centrifuges with optimized efficiency can significantly improve the bottom line and contribute to a company’s sustainability efforts. Yixing Huading Machinery Co., Ltd. has integrated energy-saving technologies into its decanter centrifuges, ensuring that our machines not only perform efficiently but also minimize energy consumption. By carefully designing each component, Huading ensures that energy use is kept to a minimum while maintaining the machine's high performance. Our focus on energy efficiency provides long-term cost benefits for industries that prioritize both performance and sustainability.

One of the key advantages of decanter centrifuges is their low maintenance needs. These machines are built with components that are designed to be robust and resistant to wear and tear, reducing the frequency of repairs and the need for constant maintenance. In particular, the scroll and bowl design of decanter centrifuges is optimized for minimal friction and wear, which prolongs the lifespan of these components. The self-cleaning capabilities of many modern decanter centrifuges further reduce maintenance time and effort. These systems automatically clean the bowl and scroll, preventing the accumulation of materials that could affect performance. This reduces the labor required for maintenance and minimizes the downtime associated with cleaning, allowing the equipment to operate for longer periods without interruption. For businesses like Yixing Huading Machinery Co., Ltd., the emphasis on low maintenance is a fundamental aspect of our decanter centrifuges. Huading’s engineers design centrifuges with advanced lubrication and sealing systems, minimizing wear and ensuring reliable operation over extended periods. By reducing the frequency of maintenance tasks and extending the time between repairs, Huading helps our clients lower operating costs and improve productivity.

Decanter centrifuges are highly versatile machines, capable of separating a wide range of materials. These machines can handle everything from fine particles to coarse solids, depending on the specific application. The versatility of decanter centrifuges makes them invaluable across a variety of industries, including biomedicine, food processing, water treatment, and oil recovery. In industries like plant extraction, decanter centrifuges are used to separate solid plant material from liquid extracts, maximizing yield while ensuring high-quality products. In the dairy industry, they help clarify milk, removing unwanted solids to produce smooth, high-quality dairy products. Decanter centrifuges also excel in the oil industry, where they separate valuable oil from impurities, ensuring higher product purity and maximizing resource recovery. Yixing Huading Machinery Co., Ltd. understands the need for flexibility in industrial operations, and as such, our decanter centrifuges are designed to handle a diverse range of materials. Whether we are working with a fine slurry in the pharmaceutical industry or coarse solids in the mining sector, Huading’s decanter centrifuges can be customized to ensure that our clients get the best separation results for their unique needs. By designing flexible equipment that can accommodate a variety of feedstock, Huading provides solutions that help businesses optimize their processes.

The ability of decanter centrifuges to handle solids efficiently is one of the key factors that contribute to their success. These machines are designed to separate even the smallest solid particles from liquids, delivering high separation efficiency. The high centrifugal forces generated within the machine enable the separation of solids that might otherwise be challenging to remove with other technologies. The helical scroll design of the decanter centrifuge helps to move the separated solids toward the discharge port, while the liquid phase is directed to a separate compartment. This dual separation mechanism ensures that solid-liquid separation is both effective and efficient. The separation efficiency can reach up to 99%, which is critical in industries such as biomedicine, where purity is paramount, and the oil industry, where every drop of recoverable oil counts. Yixing Huading Machinery Co., Ltd. places a strong emphasis on the performance of its decanter centrifuges. Our engineers have developed models that consistently achieve high separation efficiencies, helping our clients meet stringent product specifications. By optimizing the design and operational parameters of our decanter centrifuges, Huading ensures that solid-liquid separation is as effective as possible, even in the most demanding applications.
